csgo-matches/README.md

CS:GO Matches

CSGO Matches is a modern Android app that displays upcoming and live Counter-Strike: Global Offensive matches using the PandaScore API. The app is built with Jetpack Compose, MVVM, and a layered architecture that blends principles from Clean Architecture and Layered Architecture for simplicity, scalability, and testability.

📸 Screenshots

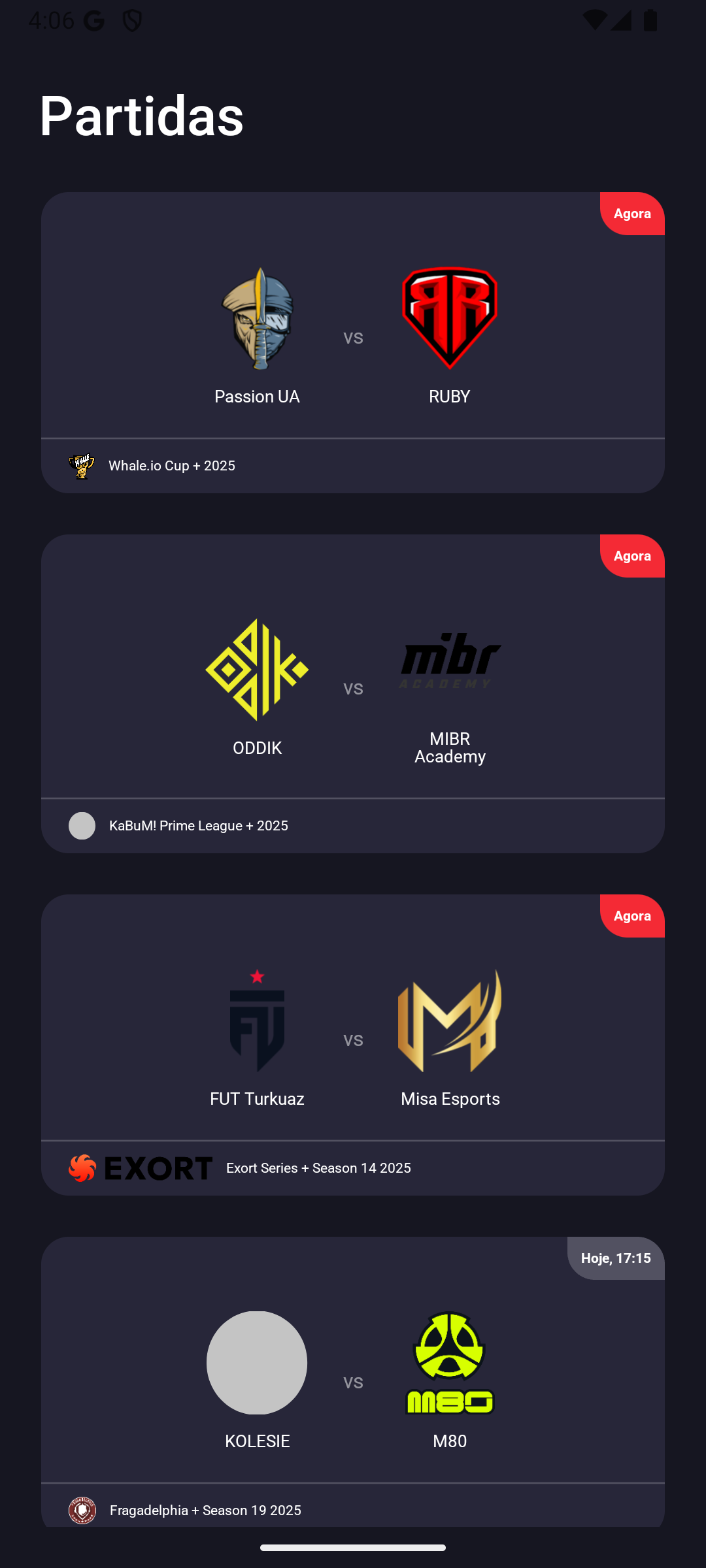

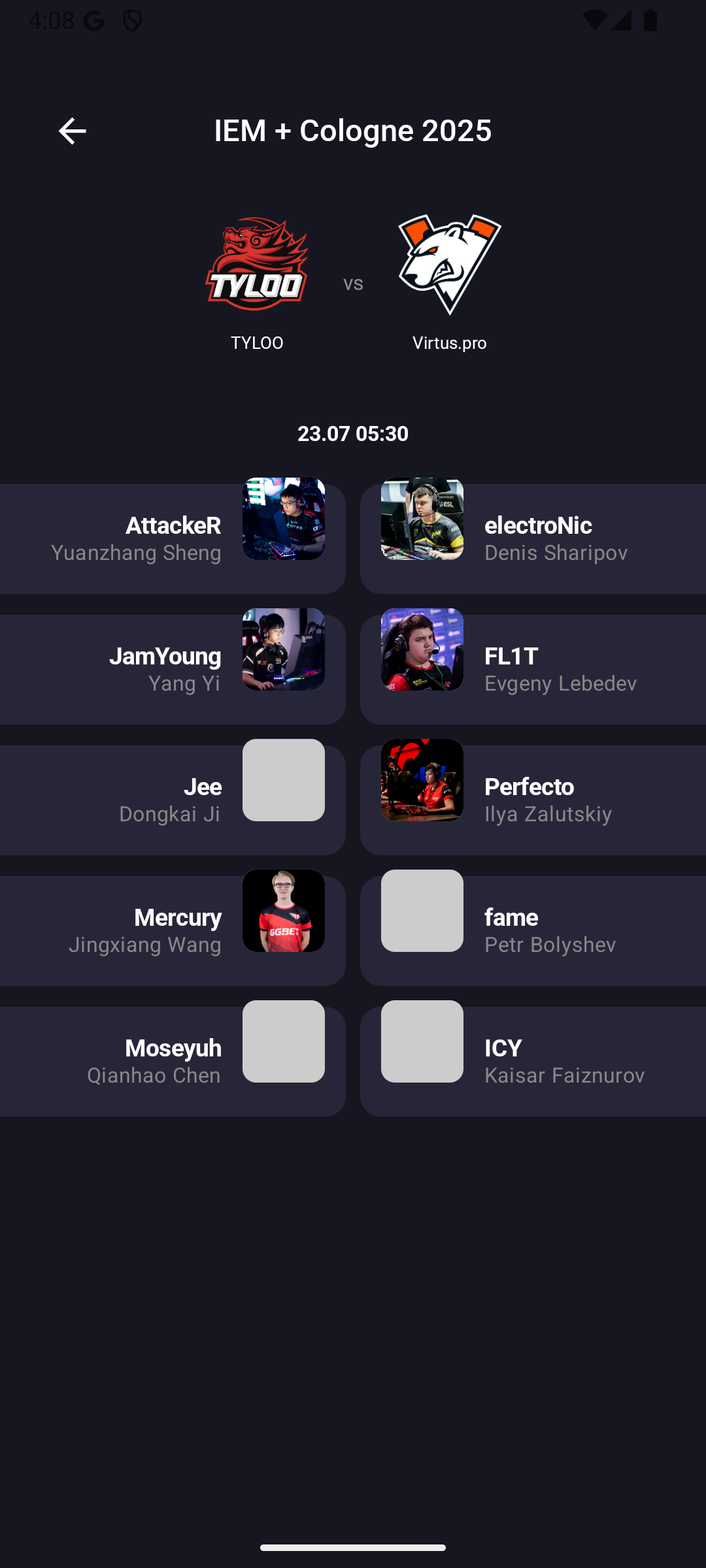

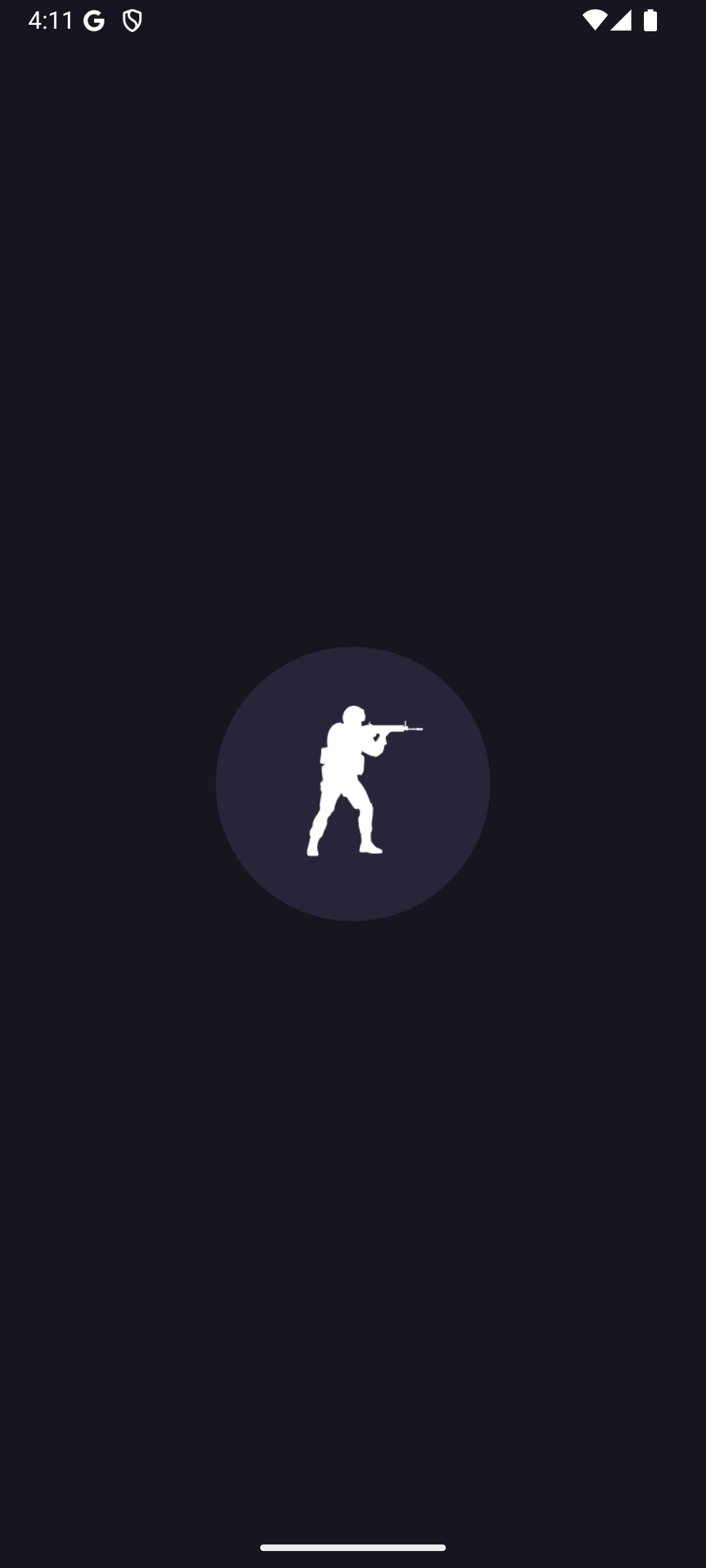

Splash Screen	Match List	Match Details

🚀 Getting Started

✅ Prerequisites

• Android Studio Giraffe or newer
• JDK 17 or higher
• Git installed

📥 Clone the Repository

git clone https://git.leomurca.xyz/leomurca/csgo-matches.git
cd csgo-matches

🔑 Configure API Access

This project integrates with the PandaScore API, and requires two secrets to run:

Gradle Property	Description	Example
API_BASE_URL	Base URL of the API	https://api.pandascore.co/csgo/
ACCESS_TOKEN	Your PandaScore API access token	YOUR_API_KEY

You must define these two properties in your local Gradle environment.

Add the following lines to your global Gradle properties (gradle.properties):

API_BASE_URL=https://api.pandascore.co/csgo/
ACCESS_TOKEN=your_actual_token_here

▶️ Run the App

• Open the project in Android Studio
• Wait for Gradle sync to complete
• Connect an Android device or launch an emulator
• Click Run

🧱 Architecture Overview

The architecture follows a hybrid approach:

• 🧩 MVVM (Model–View–ViewModel): Used to manage UI state with Compose and ViewModels.
• 🧱 Layered Architecture: Presentation, domain, and data layers clearly separated.
• 🧼 Clean Architecture-inspired: The domain layer defines interfaces and models decoupled from frameworks (but no strict use case boundaries to avoid overengineering for this scope).

📐 Layer Breakdown

Layer	Responsibilities
UI (Presentation)	Jetpack Compose UI, screen states, navigation, and ViewModels
Domain	App’s business logic: pure models and repository interfaces
Data	Implements repository interfaces, handles API calls, interceptors, DTOs, mappers
DI	Centralized dependency injection configuration using Hilt
Utils	Shared extension functions, helpers, and formatting logic

📂 Folder Structure

xyz.leomurca.csgomatches/ ├── data/ # Data layer: API, DTOs, mappers, remote implementations │ ├── mapper/ # DTO ↔ Domain model transformations │ ├── model/ # API response models (DTOs) │ ├── remote/ # Retrofit services, interceptors │ ├── repository/ # Implements domain repositories │ └── source/ # Data source abstractions │ ├── domain/ # Core business logic │ ├── model/ # Domain-level models (pure Kotlin) │ └── repository/ # Repository interfaces (contracts for data access) │ ├── ui/ # Compose UI and ViewModel layer │ ├── components/ # Reusable UI components (buttons, cards) │ ├── navigation/ # Navigation graph │ ├── screens/ # Individual screen UIs and ViewModels │ └── theme/ # Material theme, colors, typography │ ├── di/ # Hilt dependency injection modules │ ├── DispatchersModule.kt │ └── NetworkModule.kt │ ├── utils/ # Helper functions and extensions │ ├── CSGOApplication.kt # Custom Application class (Hilt entry point) └── MainActivity.kt # Main app entry point with Compose navigation

⚙️ Tech Stack

• Language: Kotlin
• UI: Jetpack Compose
• Architecture: MVVM + Layered/Clean mix
• Networking: Retrofit + OkHttp
• DI: Hilt
• Async: Kotlin Coroutines + Flow
• Testing: JUnit, MockK

✅ Testing & CI

The project includes targeted unit tests focused on key areas like data mapping, repository behavior, and time formatting logic.

Test coverage includes:

• Mapping from API models to domain models
• Remote data fetching logic
• Repository integration
• Date/time formatting for localized match display

To ensure quality, a Forgejo Actions CI pipeline runs automatically on every push to main, executing unit tests in a Docker-based Android environment.

This setup guarantees early detection of regressions and helps maintain stability as the project evolves.
